About This

• This Riser rated cable has been designed specifically for use intercom, sound, alarm and security circuits, and it is approved for installation per NEC (National Electric Code) Articles FPLR/760, CMR 800, CL3R, and CL2R/725. It can be used anywhere a stationary control circuit is needed. It is not rated for plenum use or outdoor use and it is not suitable for direct burial.<br><br>

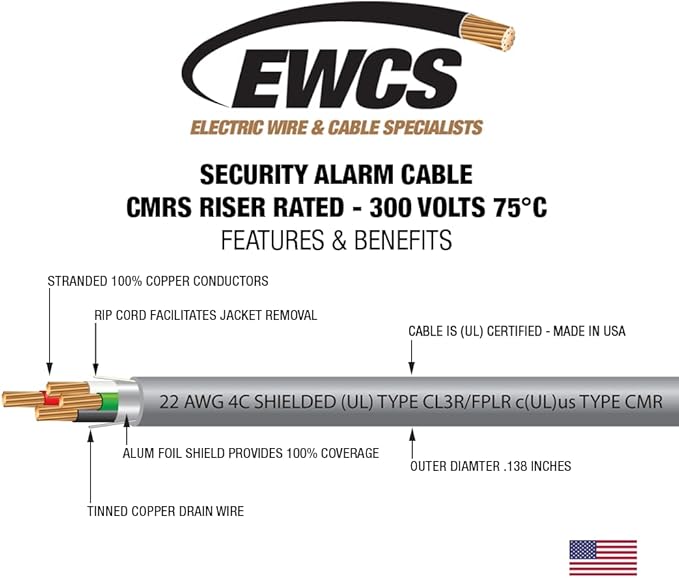

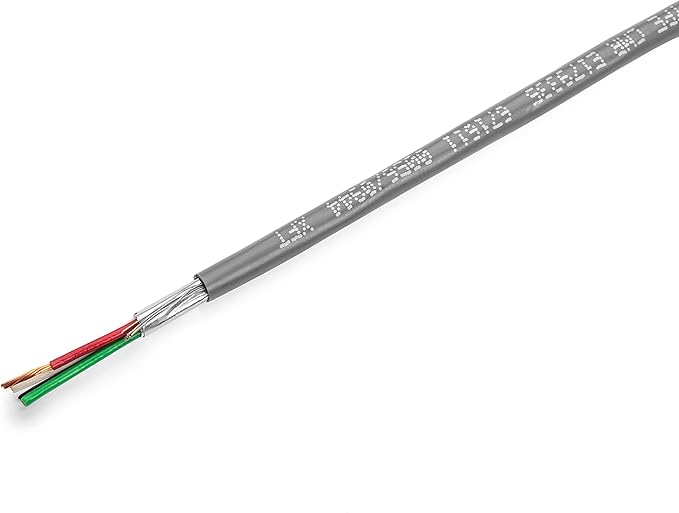

• This cable consists of four 22 AWG 7/Strand 100% bare copper conductors color coded Black, Red, White, Green. It is rated for 300 volts 75C. It is shielded with a 100% aluminum mylar shield and the drain wire is 24 AWG stranded tinned copper It has a rip cord for easy jacket removal. This cable has an OD of .138” and weighs 19# per 1000 feet <br><br>

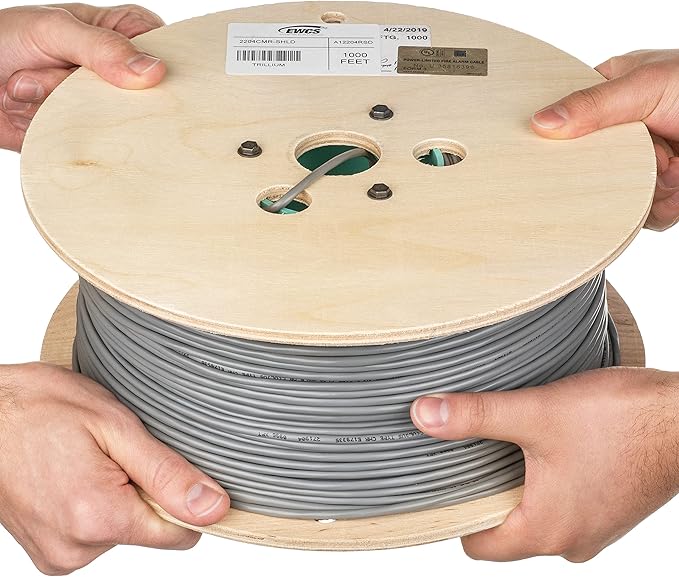

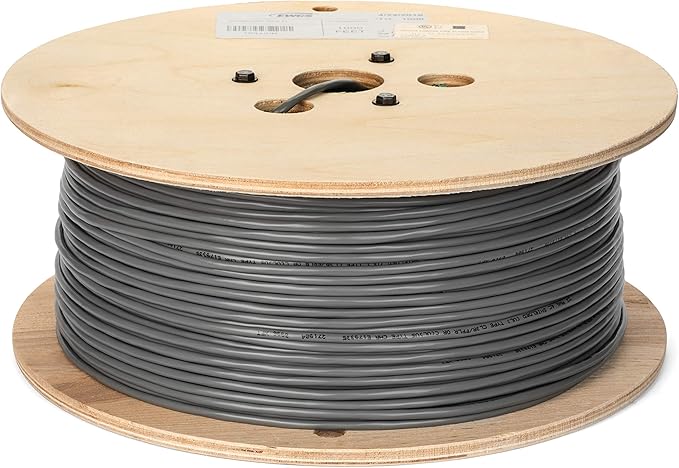

• The cable is covered with a (UL) approved Gray PVC jacket. Footage markings have been added to the jacket so you can always determine the amount remaining on the spool. The cable ships on a 12” diameter plywood spool.<br><br>
• The 22 AWG 7/Stand bare wires are made with 100% pure copper. They are insulated with color coded PVC.<br><br>
• All EWCS products are proudly made in the USA! Have a job that needs another conductor or pair count or requires a different length? EWCS offers a selection of hundreds of electronic & fire alarm cables, rated Riser or Plenum in non-shielded or shielded configurations

Overview

• Color : Gray
• Brand : EWCS
• Material : Copper
• Number of Cable Strands : 7
• Gauge : 22.0
