About This

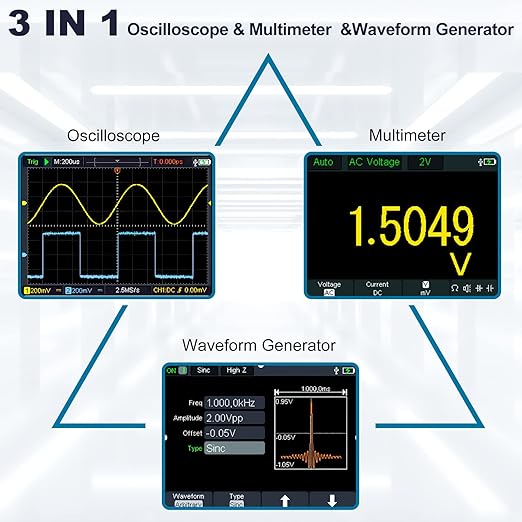

• ① Oscilloscope mode: 1. The waveform refresh rate is as fast as 10000wfms / s. 2. Dual channel, bandwidth up to 50MHZ, real-time sampling rate of 125MSa / s, record length up to 8k. 3. Cursor measurement function. 4. Four automatic measurement functions. 5. XY function. 6. One-key automatic setting function convenient for testing and debugging.
• ②Multimeter mode: 4 1/2 digits of the actual effective value, digital display: 20000 reading. 1. Standard voltage, current, resistance, diode, continuity, capacitance test. 2. The automatic range function is convenient for testing and debugging. 3. Maximum input voltage is 750VAC and 1000VDC. 4. Independent multimeter and oscilloscope inputs. 5. Read hold function. 6. Relative measurement function.

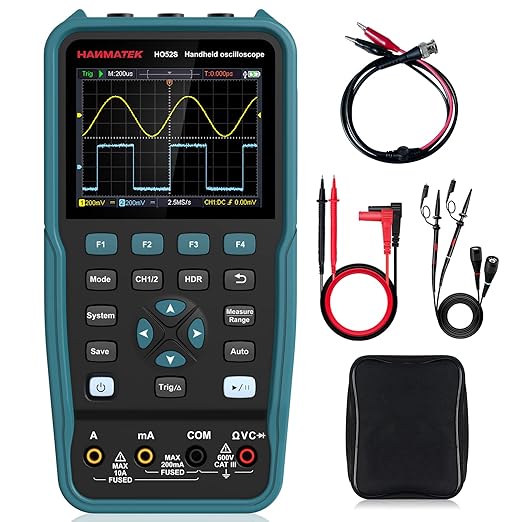

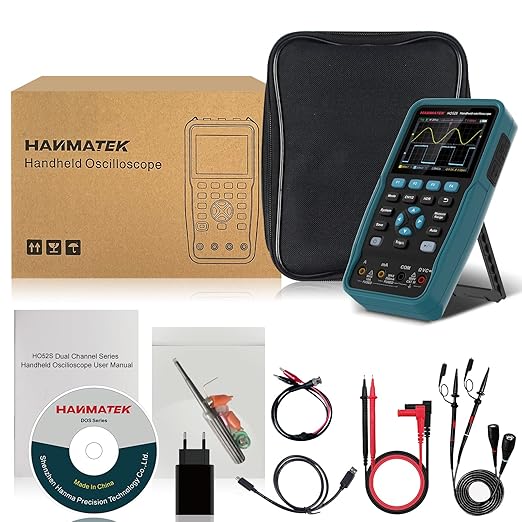

• ③Signal generator: The maximum waveform output frequency can reach 25Mhz. It can output sine waves, sawtooth waves, square waves, pulse waves, and built-in special waveforms. 1 * HO52S 3-in-1 Handheld Digital Oscilloscope / Universal / Signal Generator, 1 * Carrying Bag, 2 * Oscilloscope Probe, 1 * Adapter, 1 * USB Cable, 1 * Multimeter Pen, 1 * Manual, 1 * Calibration Oscilloscope, 1 * CD. You can download the software for this product from the link https://bit.ly/3GCcmYn.)

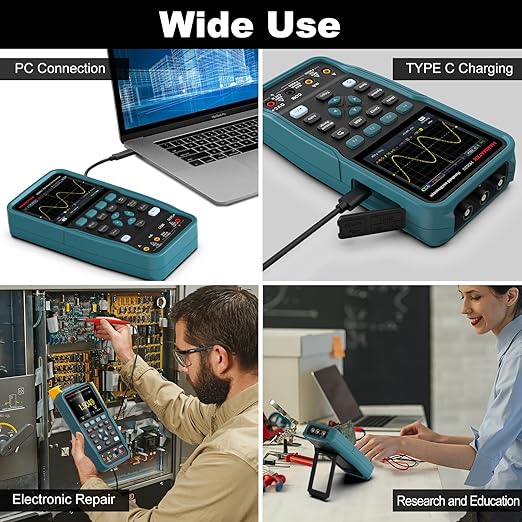

• ④ The USB Type-C interface supports not only mobile power supply but also adapter charging. With ultra-low power consumption of less than 3W, it can operate continuously for about 6 hours. Supports computer connection. When connected to a computer, the oscilloscope is recognized as a USB flash drive and can read stored images and CSV waveforms, which is convenient for displaying and analyzing future waveforms and sharing waveform data.
• ⑤ Save function: 4 sets of settings, 4 sets of reference waveforms, 4 images and 4 sets of CSV format waveforms. By displaying the reference waveform and the measured waveform on the same screen, it is easy to compare the waveforms. Self-calibration function. Up to 6 automatically measured values ​​can be displayed on the screen at the same time.

Overview

• Brand : HANMATEK
• Power Source : Battery Powered
• Style : Professional 50 Mhz+Generator
• Color : black

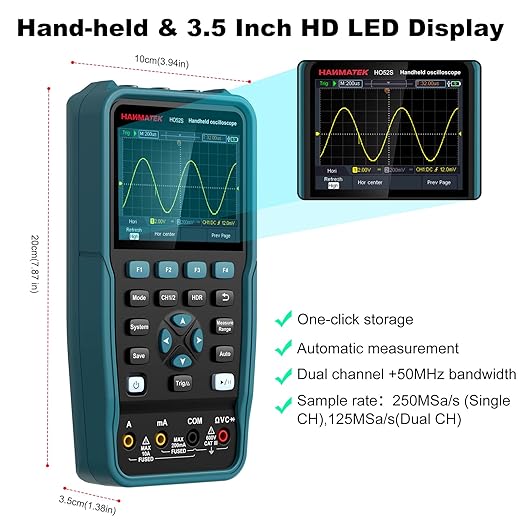

• Item dimensions L x W x H : 9.06 x 5.12 x 2.76 inches
