About This

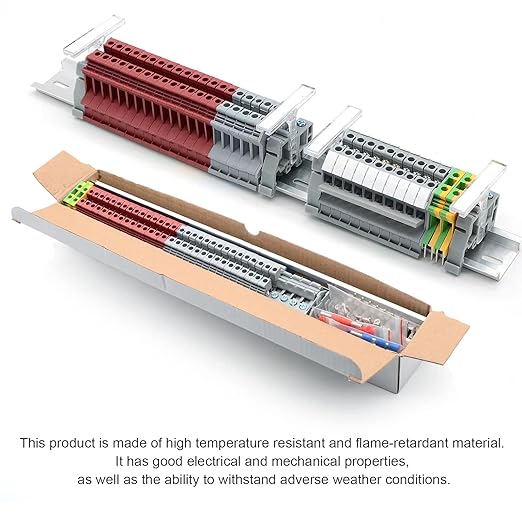

• Housing of high quality insulating material：This product is made of high temperature resistant and flame-retardant material. It has good electrical and mechanical properties, as well as the ability to withstand adverse weather conditions.All the live parts are installed in the insulating parts, and the operator's hands cannot touch the live parts after they are assembled into a row to ensure personal safety.

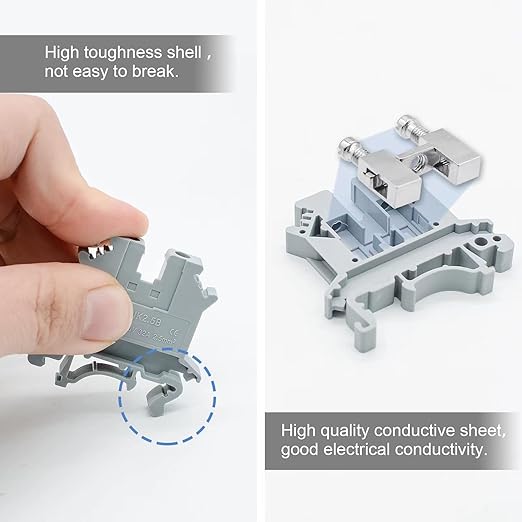

• High quality conductive sheet:The conductive sheet is made of pure copper, which can fully ensure excellent contact performance and minimal contact resistance .At the same time, the standard size can be used with confidence.
• The installation structure is reasonably designed: No additional spring clamp is required. It can be conveniently installed on the guide rail just by using reasonable design structure and plastic elasticity.It is more reliable and flexible when used.It can be bent repeatedly without deformation . The clamp foot is thick enough, and the card guide rail is firm.

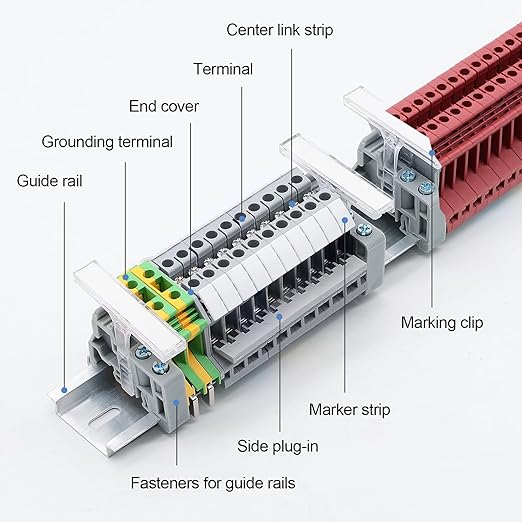

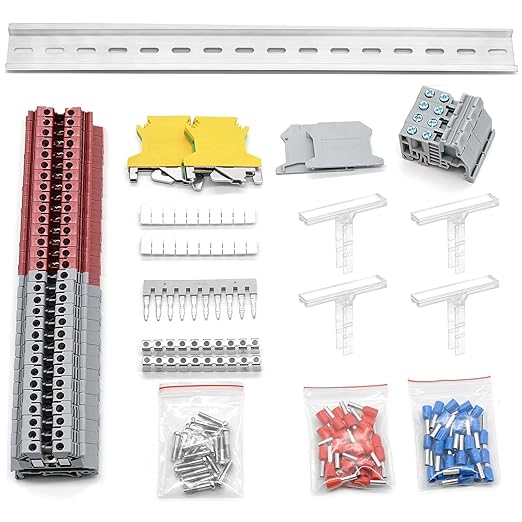

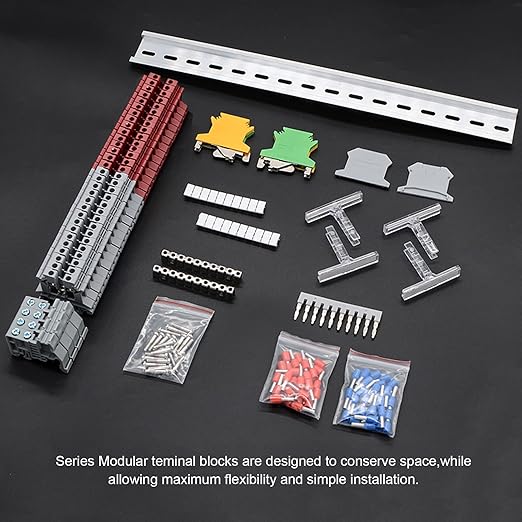

• Product suite group：Including 1 guide rail, 2 center link strips, 1 side plug-in, 2 marker strips, 2 grounding terminals, 2 baffles, 4 marking clips, 4 universal fasteners for guide rails，red and gray two colors of terminal blocks, 15 for each color, a total of 30 pieces, and 16 needle tube terminal lugs in red and blue,a total of 32 pieces.

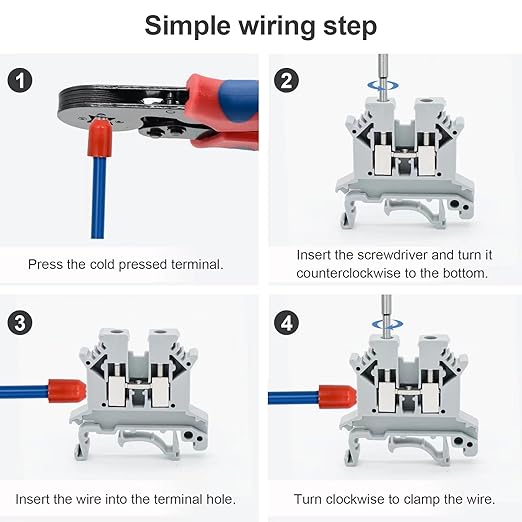

• Wiring mode:Strip the insulation layer of the wire with wire stripper, insert the cold pressed terminal, press the cold pressed terminal with wire crimper insert a slotted screwdriver and rotate it anticlockwise to rotate the wire crimping frame to the bottom, insert the wire into the depth of the terminal hole, rotate it clockwise to clamp the wire, and then take out the screwdriver.

Overview

• Item Pitch : 1 Inches
• Gauge : 33
• Connector Type : Through Hole
• Number Of Contacts : 2
• Mounting Type : DIN Rail Mount
• Material : Metal
• Color : Red & Gray
• Brand : GUETNEU
• Number Of Poles : 2
• Specification Met : CE
