About This

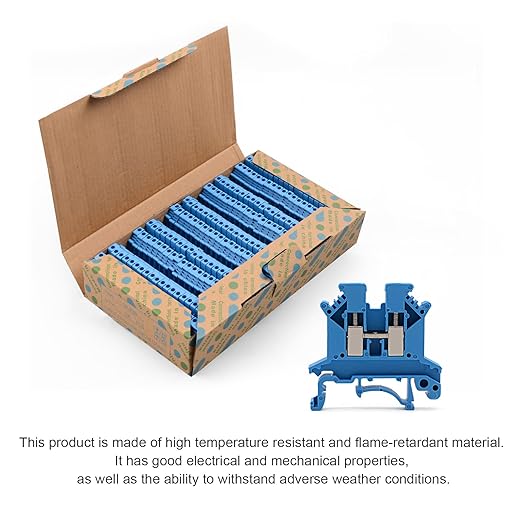

• Housing of High Quality Insulating Material: This product is made of high temperature resistant and flame-retardant material. It has good electrical and mechanical properties, as well as the ability to withstand adverse weather conditions. It has strong flexibility, the clamp foot is not easy to break, with high tensile strength

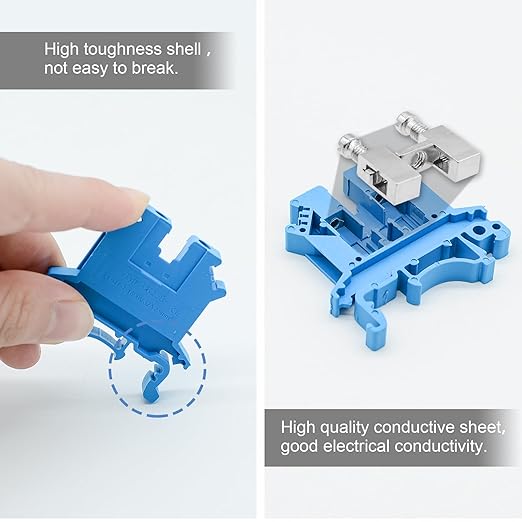

• High Quality Conductive Sheet: The conductive sheet is made of pure copper, which can fully ensure excellent contact performance and minimal contact resistance .At the same time, the standard size can be used with confidence

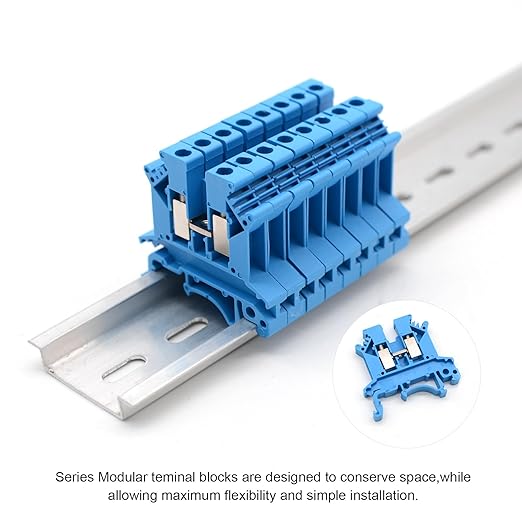

• The Installation Structure is Reasonably Designed: No additional spring clamp is required. It can be conveniently installed on the guide rail just by using reasonable design structure and plastic elasticity. It is more reliable and flexible when used.It can be bent repeatedly without deformation

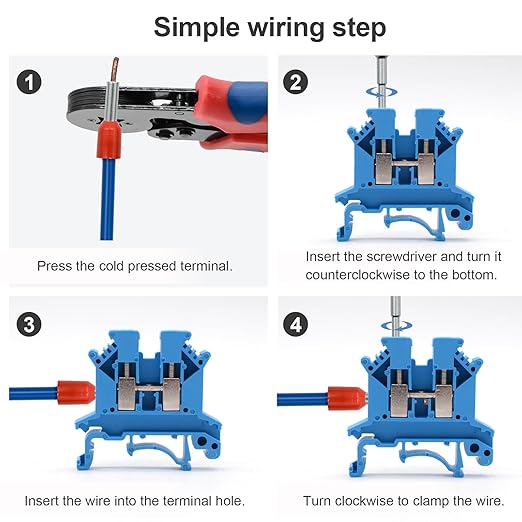

• Wiring Mode: Strip the insulation layer of the wire with wire stripper, insert the cold pressed terminal, press the cold pressed terminal with wire crimper insert a slotted screwdriver and rotate it anticlockwise to rotate the wire crimping frame to the bottom, insert the wire into the depth of the terminal hole, rotate it clockwise to clamp the wire, and then take out the screwdriver
• Wide Range of Application: This product can be widely used in machine tool equipment, electronic equipment, medical equipment, auto repair equipment and some other fields

Overview

• Material : Copper, Plastic
• Color : Blue
• Brand : GUETNEU
• Voltage : 690 Volts
• Number Of Poles : 2

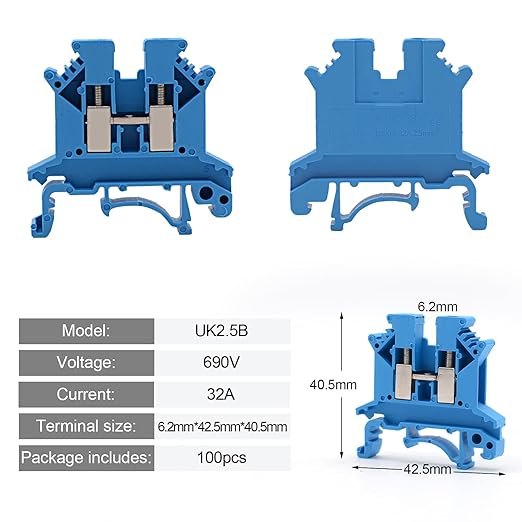

• Centerline Length : 42.5 Millimeters
• Manufacturer : New.Sunny
• UPC : 699838724631
