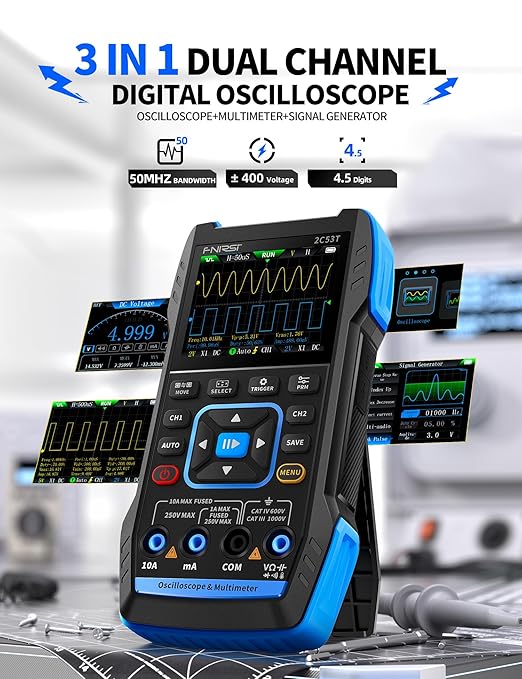

FNIRSI 2C53T Upgraded Handheld Oscilloscope, 50MHz Bandwidth, 3IN1 Digital Oscilloscope Multimeter DDS Generator, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test
FNIRSI 2C53T Upgraded Handheld Oscilloscope, 50MHz Bandwidth, 3IN1 Digital Oscilloscope Multimeter DDS Generator, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test
About This

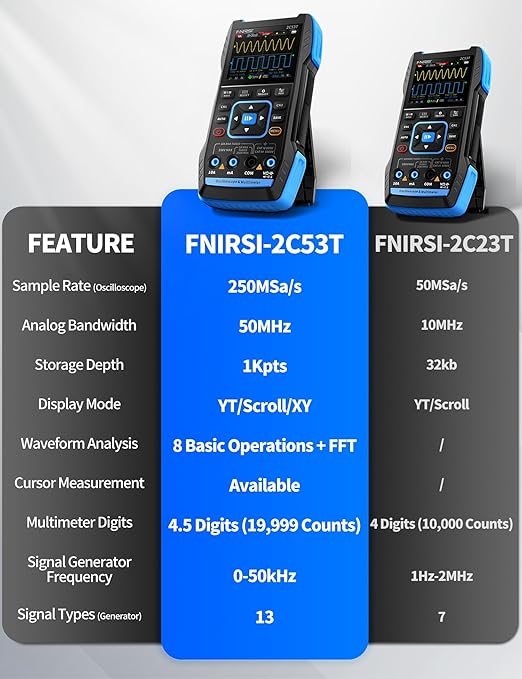

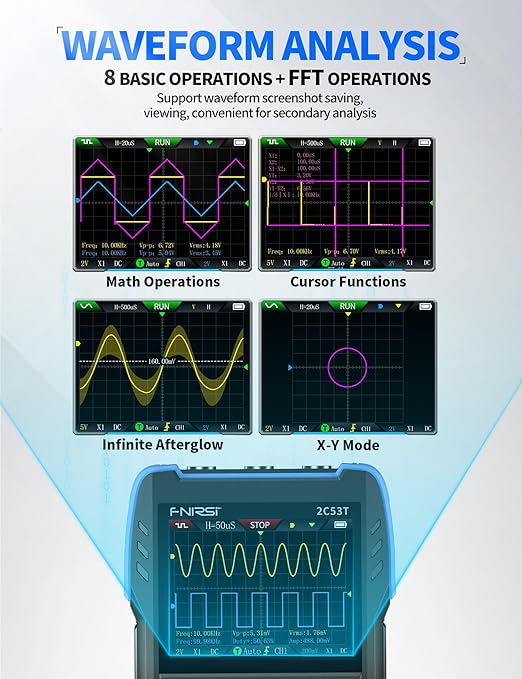

- 【Newly Version】The 2C53T is an upgraded version of the 2C23T, which improves the measuring range and adds math operation，cursor measurement，persistence mode，XY mode features

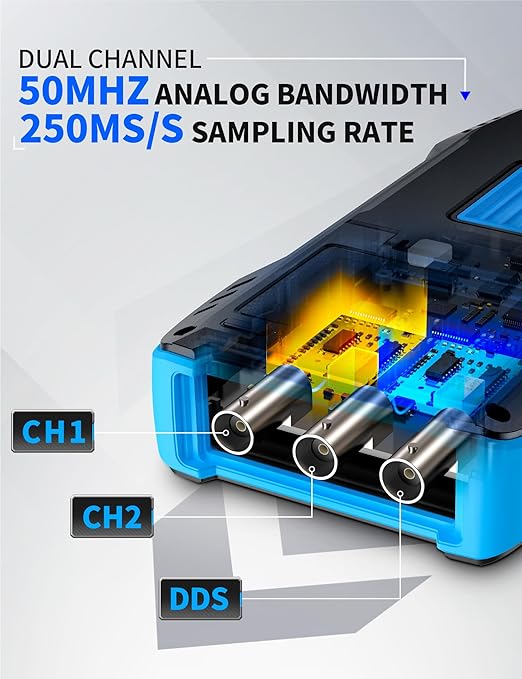

- 【2 Channel Oscilloscope】50 MHz bandwidth, 250 MSa/s sampling rate, 1 Kpts record depth, automatic measurement function, max voltage 400 V, vertical sensitivity 10mV/div-10V/div , support waveform image storage and export

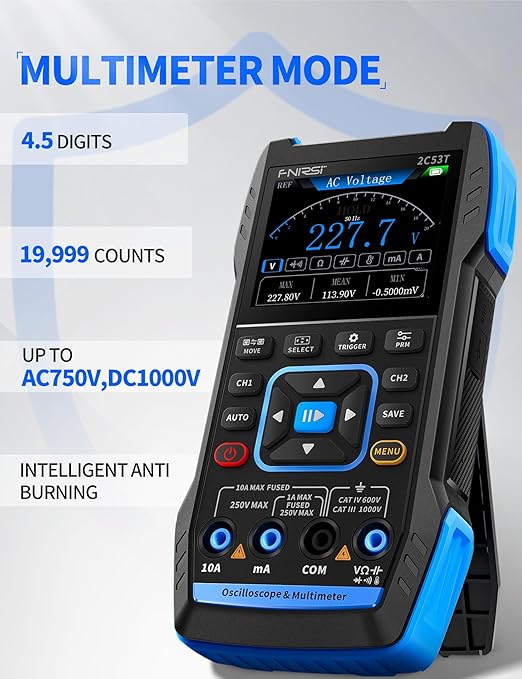

- 【4.5-Digit 19999 Counts Multimeter】AC Voltage: 0-750 V, DC Voltage: 0-999.9 V, DC/AC Current: 0-9.999 A, Resistance: 0-19.99 MΩ, Capacitance: 0-99.99 mF, Continuity Measurement. Multi-function meter for professionals, schools and hobbyists

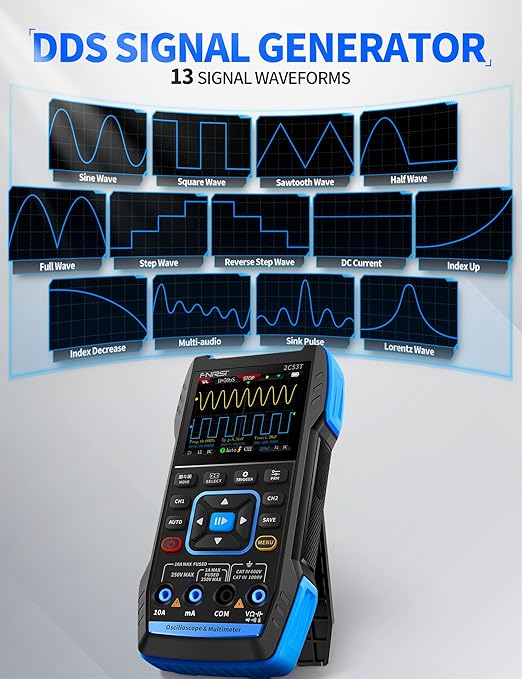

- 【Signal Generator】The maximum waveform output frequency can reach 50 kHz and a step of 1 Hz, and can output 13 waveforms
- 【Save function】one-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen
- 【Excellent Design】The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000 mAh Li-ion battery, standby time up to 6 H, Type-C interface supports 5 V/1 A charging
- 【Language Switch】After powering on the device, press the left or right directional buttons to enter System Settings, then select the Language option to switch languages.
Overview
- Brand : FNIRSI
- Power Source : Battery Powered
- Color : black
- Item Weight : 400 Grams
- Item dimensions L x W x H : 6.57 x 3.5 x 1.38 inches
Details
This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.
