About This

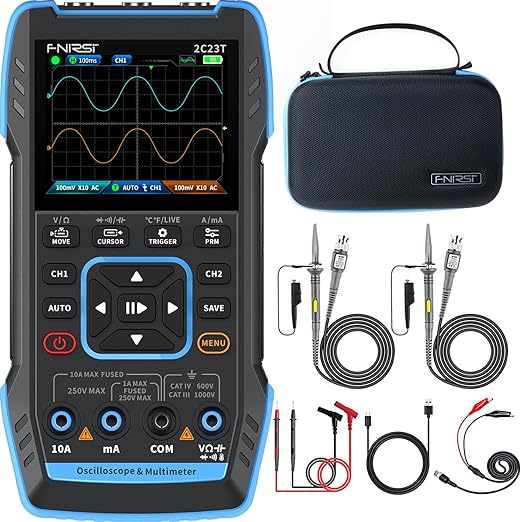

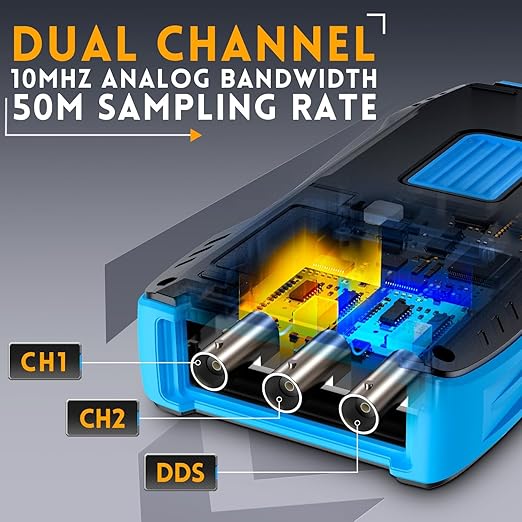

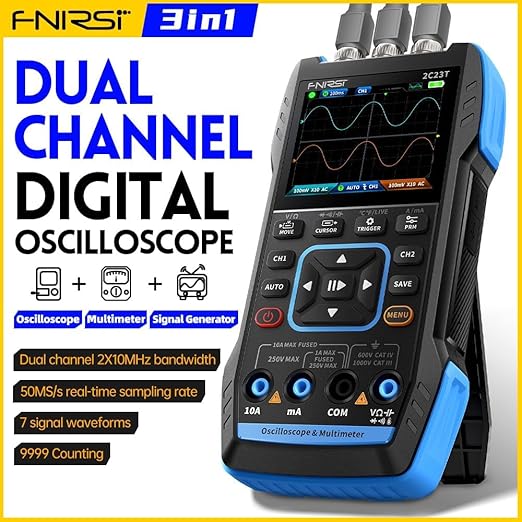

• 【Oscilloscope Mode】2 channel handheld oscilloscope, 10 MHz bandwidth, 50 MSa/s sampling rate, 32 kb record depth, automatic measurement function, max voltage 400 V, vertical sensitivity 200 mv/div-10 v/div , support waveform image storage and export
• 【Multimeter Mode】4-digit 10000 Counts. AC Voltage: 0-750 V, DC Voltage: 0-999.9 V, DC/AC Current: 0-9.999 A, Resistance: 0-99.99 MΩ, Capacitance: 0-99.99 mF, Continuity Measurement. Multi-function meter for professionals, schools and hobbyists
• 【Signal Generator】The maximum waveform output frequency can reach 2 MHz and a step of 1 Hz, and can output seven waveforms including sine, square, triangle, full, half, noise, and DC

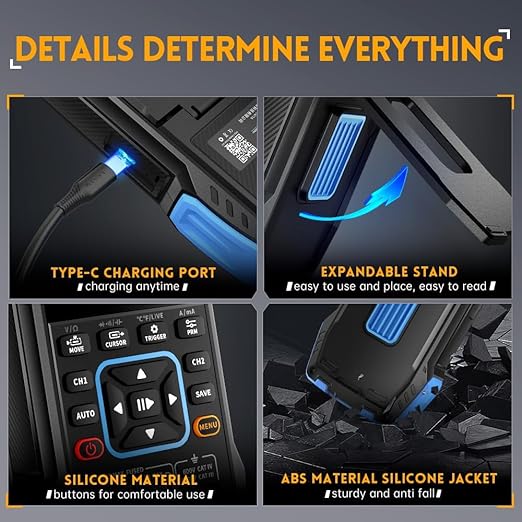

• 【Save function】one-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen

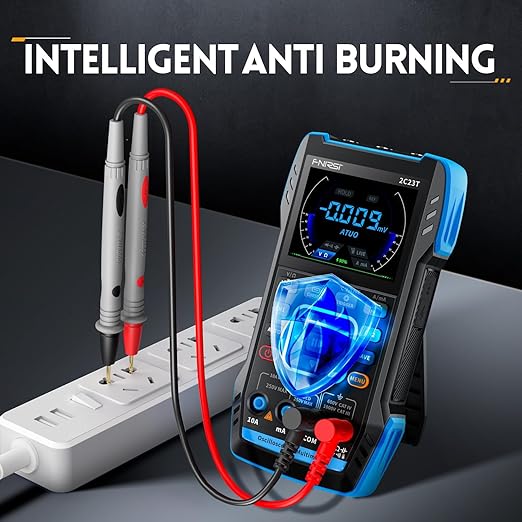

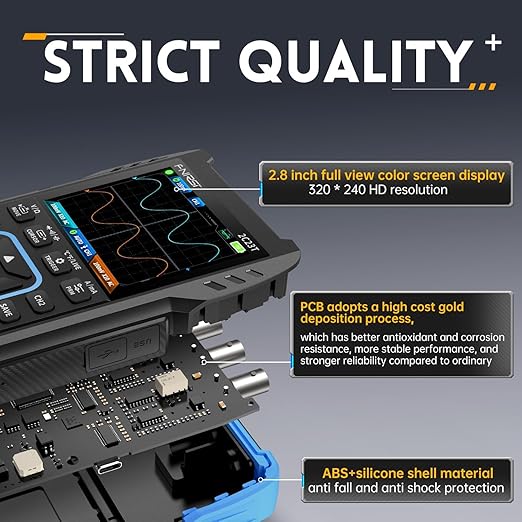

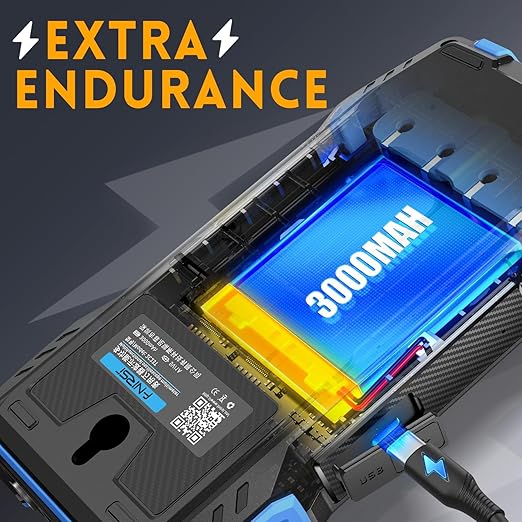

• 【Hardware Design】The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000 mAh Li-ion battery, standby time up to 6 H, Type-C interface supports 5 V/1 A charging

Overview

• Brand : FNIRSI
• Power Source : Battery Powered
• Color : Blue
• Specification Met : Ul 61010-1, Ce Marked, Rohs Compliant
• Upper Temperature Rating : 1300 Degrees Celsius
