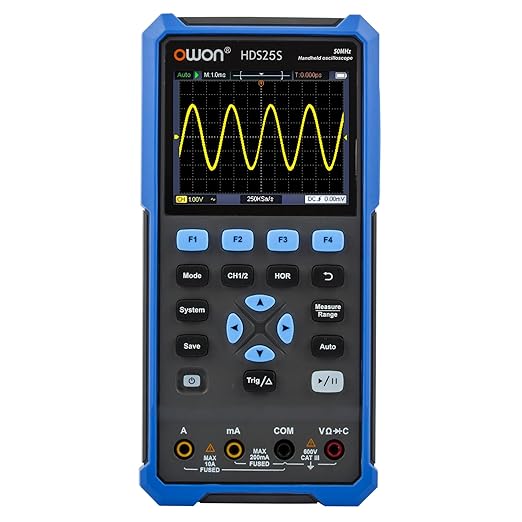

OWON Oscilloscope Multimeter, OWON HDS25S Dual Channel Handheld Oscilloscope with 10MHz Waveform Generator with 250 MSa/s Sample Rate for Multi Tester
OWON Oscilloscope Multimeter, OWON HDS25S Dual Channel Handheld Oscilloscope with 10MHz Waveform Generator with 250 MSa/s Sample Rate for Multi Tester
About This

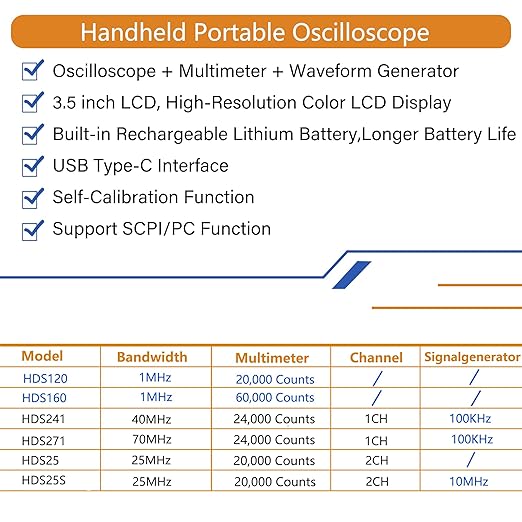

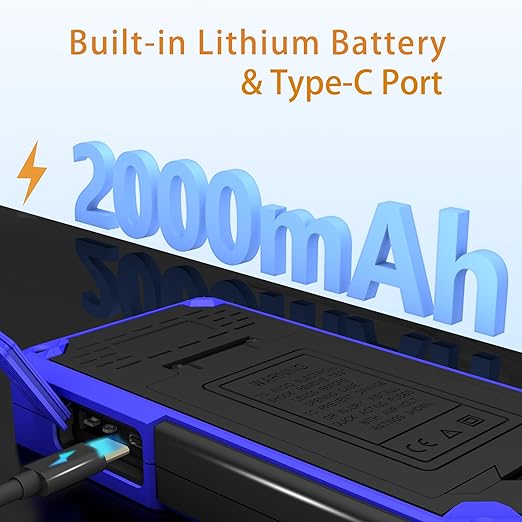

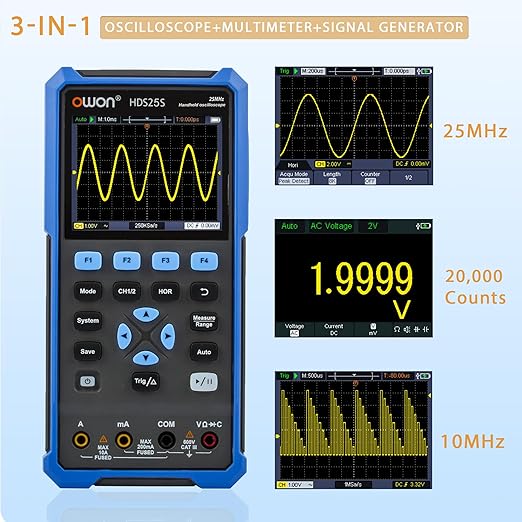

- 3 in 1 functions with oscilloscope, multimeter and waveform generator, meet your demand, HDS25S oscilloscope is a multifunctional electronic testing device; Portable compact size and lightweight, and built-in rechargeable battery, easy to carry anytime and anywhere
- Oscilloscope: Dual Channel; 25MHz Bandwidth; 250 MSa/s Real-time sampling rate; Waveform refresh rate up to 10,000 wfms/s; Cursor testing & 7 kinds of automatic measurements; Self-calibration function; SCPI supported, facilitate secondary development; Support PC software connection
- Multimeter: 20,000 counts reading digital display, support basic measurement(Voltage, current, resistance, capacitance, on/off, diode), Max input voltage AC : 750V /DC : 1000V; Max input current AC : 10A /DC : 10A; Support Auto Range & True RMS
- AWG: Built in 1CH 10MHz Arbitrary Waveform Generator; 125MSa/s Sampling, 8k Waveform Depth, 14 bit Vertical Resolution, 50 Ω Output Impedance; Support wave: Sine/Square/Ramp/Pulse/Arbitrary; CAN use the same time BUT CAN’T display at the same time, it need to press MODE button to switch
- Application: Oscilloscopes are used to test and troubleshoot electronic circuits, Field Service And Repair, it can visualize the waveforms of signals passing through the circuit, which can help identify issues such as voltage spikes, or noise; Apply in Automotive Diagnostics, Signal Analysis, connected to sensors and components in a vehicle to identify potential issues
