About This

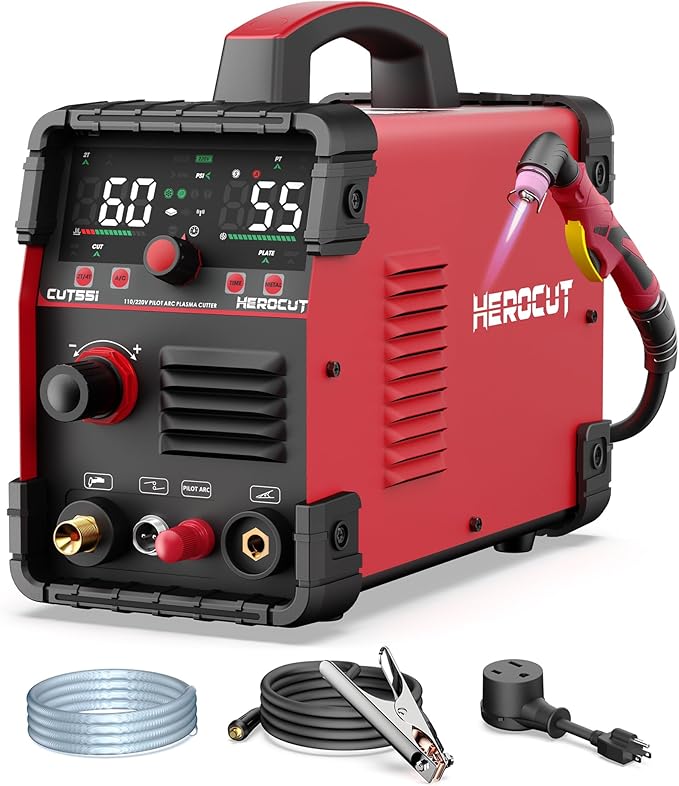

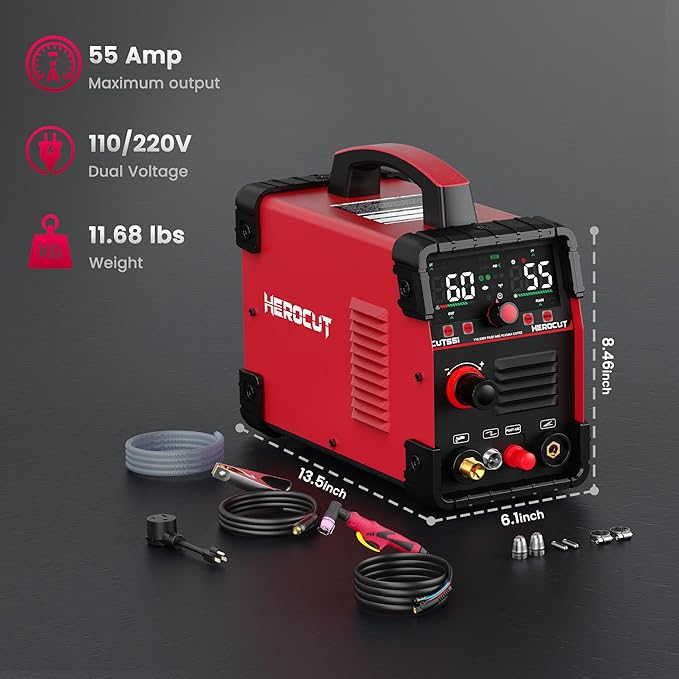

• [Plasma Cutting Thickness]: The plasma cutting equipment with advanced IGBT inverter technology, this high-frequency plasma cutter operates on both 110V and 220V power sources at 50/60 Hz, offering a 60% duty cycle. When using 110V power, it delivers 15-40A of cutting current; on 220V, it ranges from 15-55A. Maximum recommended cutting thickness reaches up to 12mm at 40A and 45 PSI with 110V input, or 18mm at 55A and 70 PSI with 220V input

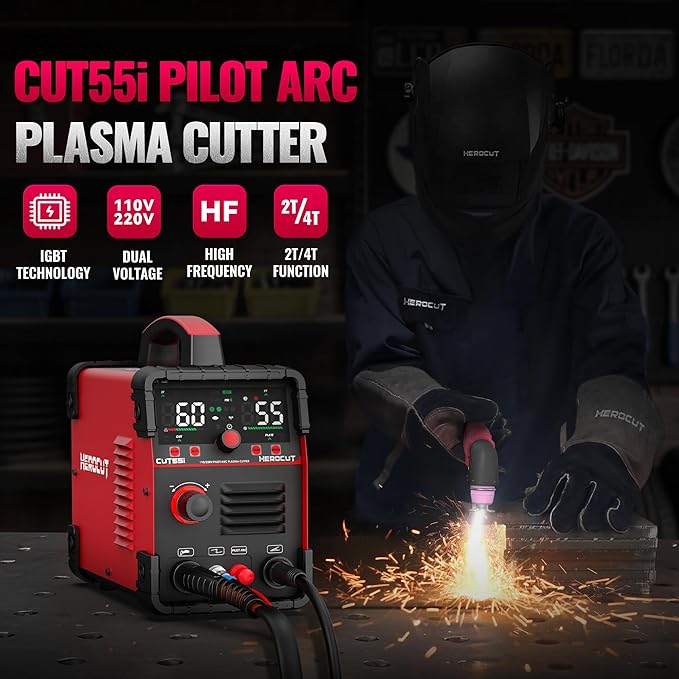

• [Non-Touch Pilot Arc Plasma Cutter]: The CUT55i plasma cutter features a pilot arc function that utilizes high-frequency, non-touch pilot arc. The torch doesn’t need to touch the metal surface to start cutting. The PA (Pilot Arc) adjustable setting allows users to control how long the pilot arc remains active, helping reduce power consumption when not in use and decreasing electrode wear, which ultimately prolongs the life of consumables

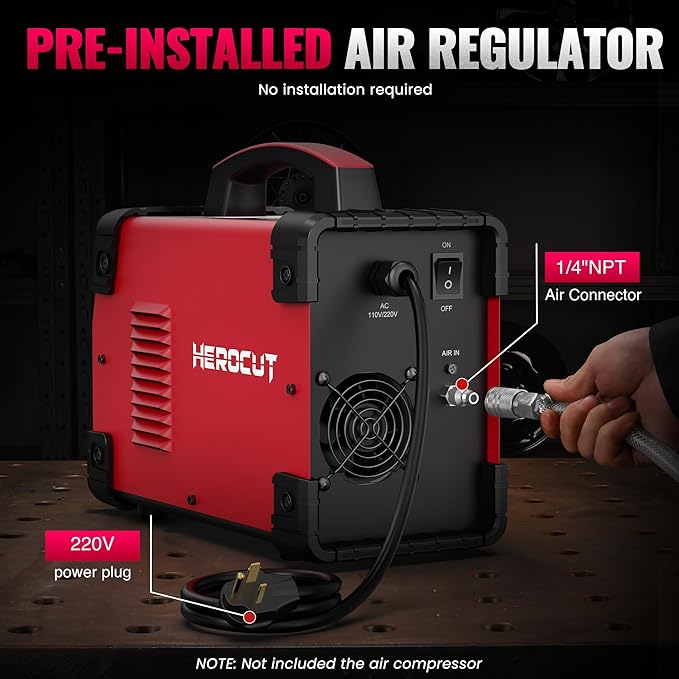

• [Built-in Air Sensor System]: This machine includes an internal air sensor that shows air pressure directly on the front panel. Manual adjustment is possible via the air regulator (automatic pressure adjustment is not supported). A rear-mounted air filter and quick-connect 1/4 NPT fitting allow for fast setup. It’s ready to use right away when connected to an air compressor, with optimal performance at 65 PSI and 250 liters per minute airflow (NOTE: Not included the air compressor)

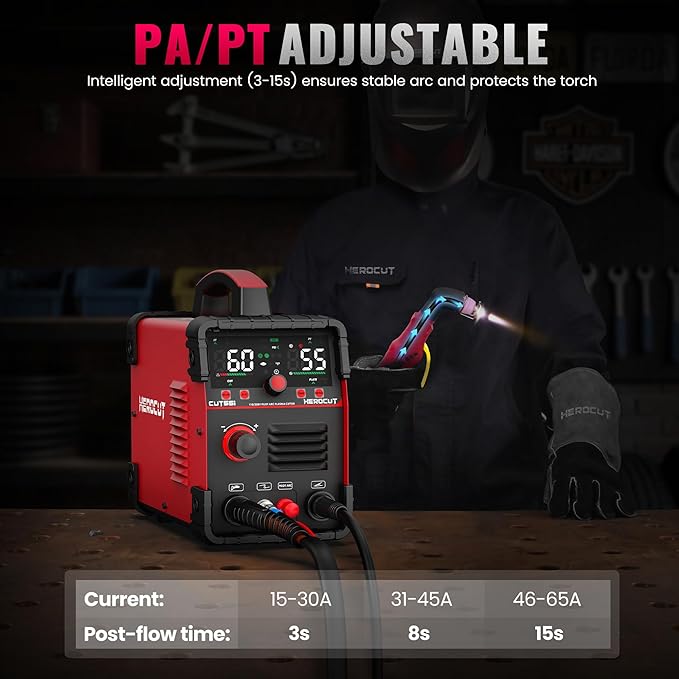

• [PT/2T/4T/PA Function]: The post-flow cooling time can be adjusted between 3-15 seconds, which helps dissipate heat from the torch head and prolongs the lifespan of consumables. A setting of 4-8 seconds is typically suggested for optimal performance. The 2T/4T modes provide different levels of automation in cutting operations, reducing the need for manual control. In 2T mode, the system offers semi-automatic operation, while 4T enables fully automatic cutting. The PA (Pilot Arc) function allows adjustment of the pilot arc duration — longer durations are suitable for cutting materials like mesh metal, while shorter durations help reduce wear on consumable parts

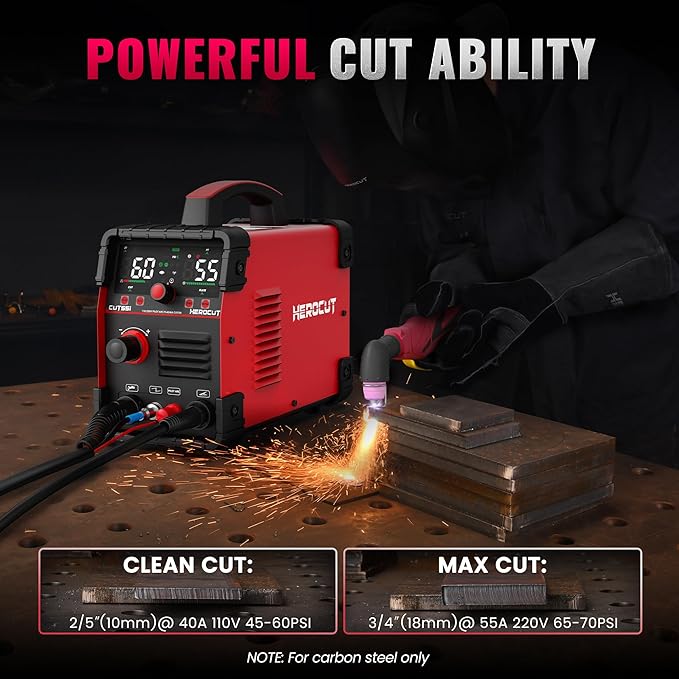

• 100% Duty cycle in light work, 60% Duty cycle in heavy work; Max cutting thickness 12mm in 110V 45PSI 40Amps 100mm/min cutting speed, Max cutting thickness 18mm in 220V 70PSI 55Amps 150mm/min cutting speed

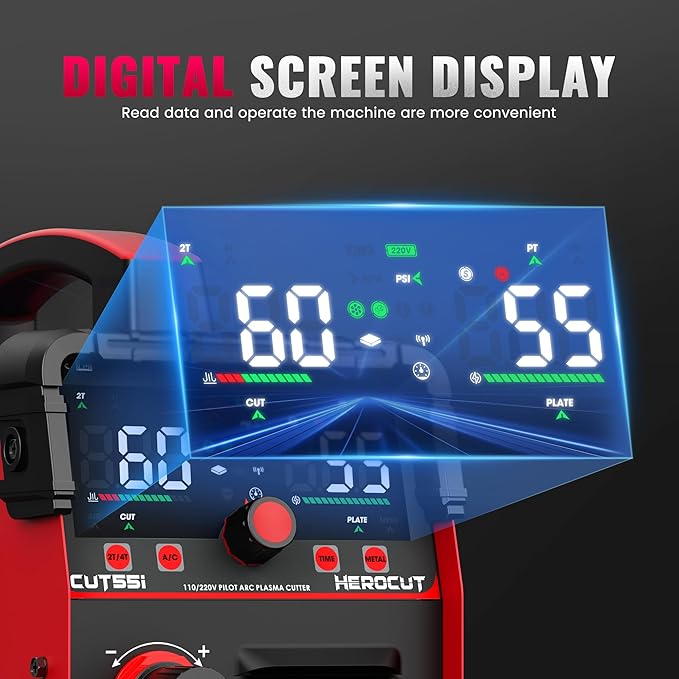

• [Screen Display Synergic Control]: Equipped with a clear digital display, this unit provides real-time monitoring of key parameters such as air pressure, voltage, and current. Users can easily adjust settings on the fly, improving overall efficiency. In case of a malfunction, the screen will show an error code, making it easier to identify and resolve issues quickly
